Compared to traditional aluminum oxide ceramic, aluminum nitride’s thermal conductivity is 6-8 times higher, while it maintains excellent electrical insulation and mechanical strength. As 5G base stations, new energy vehicles, and AI servers demand increasingly stringent thermal management, this once-costly material is becoming an irreplaceable “thermal management expert” for high-reliability electronic packaging.
Aluminum nitride ceramic has become a favorite in electronic packaging due to its unique combination of physicochemical properties. Its thermal conductivity of 170-200 W/(m·K) far exceeds that of aluminum oxide (20-30 W/(m·K)), nearing the cooling capacity of metallic aluminum while remaining a perfect electrical insulator.
The Coefficient of Thermal Expansion is another critical metric. AlN‘s CTE is approximately 4.5×10⁻⁶/°C, very close to that of semiconductor silicon (3-4×10⁻⁶/°C). This close match significantly reduces interfacial delamination or chip cracking caused by thermal stress during rapid temperature swings, greatly enhancing device reliability.
Electrically, AlN boasts a volume resistivity greater than 10¹⁴ Ω·cm and a relatively low dielectric constant (around 8-9), making it suitable for high-frequency, high-speed applications. While its mechanical strength is slightly lower than Al₂O₃, its flexural strength remains at 300-400 MPa, sufficient for most packaging structural requirements.
In the 5G communications sector, AlN ceramic substrates have become the preferred choice for base station power amplifier (PA) modules. At millimeter-wave frequencies, where power density surges, AlN substrates can reduce chip junction temperature by 30-50°C, ensuring signal stability and device longevity.
Within new energy vehicle powertrains and onboard chargers (OBC), silicon carbide (SiC) power modules widely employ AlN ceramic substrates. Compared to traditional solutions, modules using AlN packaging can increase power density by 15-30% while reducing thermal resistance by over 40%.
The LED lighting industry, especially for high-power UV LEDs and laser LEDs, has widely adopted AlN ceramic substrates. Their superior heat dissipation allows LED chips to operate at higher currents, boosting light output efficiency by 20-35% and significantly delaying lumen depreciation.
In aerospace and defense, AlN packaging is used in phased array radar T/R modules and high-density microwave integrated circuits. Its balanced properties ensure electronic system stability under extreme temperature cycling (e.g., -55°C to +125°C).
The expanding application of AlN ceramic is tightly coupled with advances in circuit fabrication processes. Thick Film Technology involves screen-printing tungsten or molybdenum-manganese metal pastes onto AlN substrates, followed by high-temperature co-firing to form circuits. This mature technology offers relatively low cost and is widely used in automotive electronics and industrial control modules.
Direct Bonded Copper Technology bonds oxidized copper foil to an AlN substrate at high temperatures, creating an extremely strong copper circuit layer. DBC substrates feature thicker copper, increasing current-carrying capacity by 3-5 times, making them ideal for high-power IGBT and SiC module packaging.
The most advanced Thin Film Technology uses vacuum sputtering to deposit micrometer-thin circuits on the AlN surface, achieving line widths/spacing below 20μm. This process suits high-frequency millimeter-wave circuits, reducing transmission loss by 60-80% compared to traditional FR4 substrates, and is core to 5G RF front-end modules.
With the rise of third-generation wide-bandgap semiconductors like SiC and GaN, the AlN ceramic market is experiencing explosive growth. Research indicates the global AlN ceramic substrate market surpassed $250 million in 2023 and is expected to grow at a CAGR of 11.8% from 2025 to 2030.
China has become a global growth engine. Driven by robust demand from EVs, 5G base stations, and photovoltaic inverters, China‘s share of global AlN ceramic substrate production now exceeds 35% and continues to rise.
Cost was once a major barrier to AlN adoption. However, with the maturation of mass-production technologies like tape casting and pressure-assisted sintering, the cost gap with aluminum oxide has narrowed from over 10x to just 2-3x, significantly improving its cost-performance ratio.

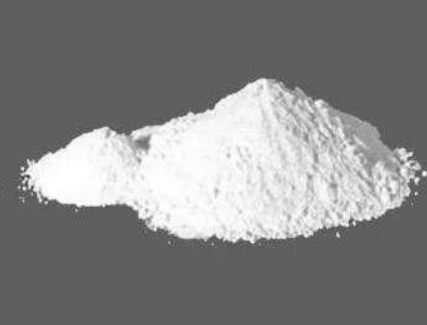

Despite its superior properties, AlN ceramic faces challenges. It requires extremely high raw material purity; oxygen content in aluminum powder must be below 1% to avoid forming alumina, which reduces thermal conductivity. The selection and control of sintering aids are also critical—trace amounts of silicon or calcium additives promote densification, but excess amounts degrade performance.
In the substrate metallization process, AlN’s relatively inert surface leads to poor wetting by conventional solders. Developing specialized active solders or employing surface roughening and plating techniques is necessary to ensure bonding reliability.
Looking ahead, AlN-diamond composites and functionally graded materials are emerging as R&D hotspots. By incorporating high-thermal-conductivity secondary phases, composite thermal conductivity promises to exceed 400 W/(m·K), while offering tunable CTE to meet the demands of future 3D chip stacking and advanced packaging.
The story of aluminum nitride ceramics is a classic case of material science precisely responding to industrial demands. It is not a perfect material, but it has found the best balance in the triangle of heat dissipation, insulation, and reliability. As semiconductor devices continue to evolve towards high frequency, high voltage, and high power density, this material revolution triggered by heat has only just begun. The competition in the next-generation packaging technology is essentially a race of material innovation, and aluminum nitride has already taken a key starting position.
