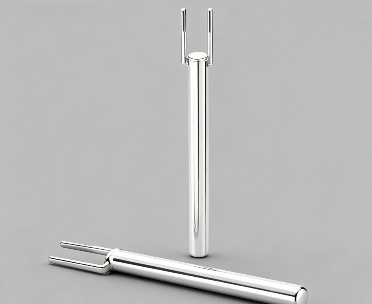

Product Name: High-Efficiency Ceramic Heating Core for Soldering Irons
Product Material: High-Purity Alumina Ceramic (96% $Al_2O_3$) or Silicon Nitride ($Si_3N_4$), internal Tungsten (W) heating circuit
Material Characteristics: Extreme heat-up speed (reaches 350°C in <10 seconds), Superior insulation resistance (>100MΩ at high temperatures), High dielectric strength (1250V/min without breakdown), Acid and alkali corrosion resistance, Oxidation-free encapsulated circuit, Ultra-compact dimensions with high power density, Stable temperature coefficient of resistance (TCR)
Application Fields: Adjustable temperature soldering irons, Portable USB/battery soldering pens, Lead-free soldering stations, Desoldering pumps, Constant temperature plastic welding, Precision soldering robots, Rework stations
Application Industries: Electronic Engineering (SMT/PCB assembly), Broad Semiconductor (package repair), Advanced Machinery (wire harness processing), New Energy (BMS maintenance), Aerospace (on-site electronics repair), Biomedical (medical device assembly)
Processing Difficulties: Achieving ultra-miniature co-firing while maintaining circuit integrity, Ensuring precise resistance tolerance (±5% or less) for accurate temperature control, Controlling the strength of silver-plated lead attachments to prevent fracture, Managing thermal expansion matching to prevent ceramic cracking during rapid cycling
Processing Flow: Ceramic slurry processing → Precision circuit screen printing (internal) → Multi-layer micro-lamination → High-temperature vacuum co-firing → Precision OD/ID grinding → Lead wire terminal brazing → Power-on aging test → Insulation and leakage current detection → Visual inspection under magnification → ESD-safe packaging
Delivery Period:
This Ceramic Heating Core is specifically engineered for professional soldering applications requiring rapid thermal recovery and precise temperature stability. By integrating a high-performance tungsten heating circuit within a dense ceramic body, it provides an isolated heat source that is immune to oxidation and leakage currents. Compared to traditional mica or nichrome wire heaters, our ceramic cores offer a significantly longer service life, a more compact footprint, and the ability to reach operating temperatures in seconds—making them the ideal choice for modern lead-free soldering and precision electronic rework.
Key Features
Instantaneous Heat-up: Reaches soldering temperatures in under 10 seconds for improved productivity.
Leakage-Free Design: Internal heating circuit is fully encapsulated, ensuring zero electrical leakage to the soldering tip.
Thermal Shock Resistance: Designed to withstand thousands of rapid heating and cooling cycles without structural failure.
Energy Efficient: High energy conversion efficiency with minimal heat loss through the handle.
Compact Integration: Small diameter allows for slimmer, more ergonomic soldering pen designs.
